Cattle Equine Ovum Pick-UP(OPU) Ultrasound System

ASP Junior

Egg collection techniques generally include endoscopic egg collection, ultrasound-guided egg collection, and blind egg collection. At present, the more mature and most widely used technique is ultrasound-guided egg collection, which is based on the principle of utilizing ultrasound machines to assist in the extraction of eggs. By observing the ultrasound images on the monitor, the operator can clearly see the location of the animal’s ovaries, and then accurately insert the puncture needle of the ovum collection instrument into the follicle to extract the eggs.

Ovum pick up (OPU) is becoming increasingly popular among young and older cattle and horses because it helps to increase the number of foal animals produced per mare and cow each breeding season.

Inquiry Now Download as PDF

Product Detail

Applications

The cow horse ovum pick-up is a device used to collect eggs from female animals. The instrument is usually guided by ultrasonic waves, with fine needles or other collection tools, to minimize the invasive acquisition of eggs.

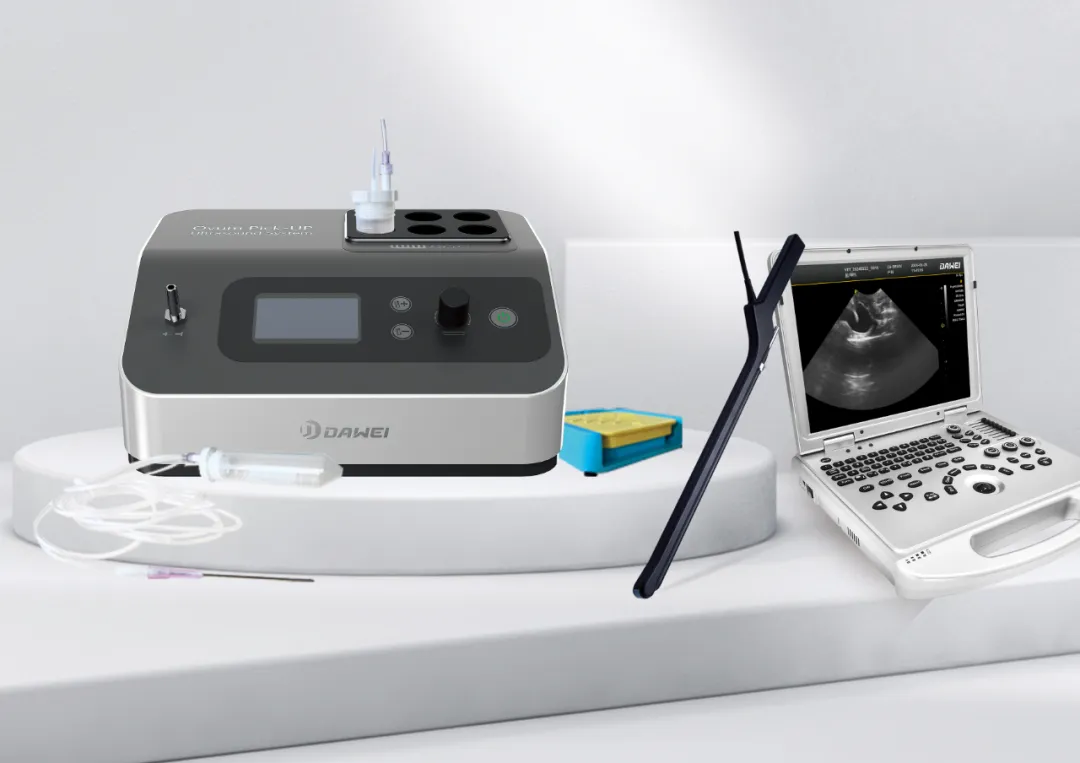

Dawei veterinary ovum pick-up device ASPJunior adopts the imported intelligent processor to control the temperature settings, working parameters, negative pressure settings, working parameters, with high control accuracy and working efficiency. The LCD screen accurately displays the settings, real-time work of the temperature and negative pressure value data intuitive and clear, easy for users to operate.

It is widely used in animal breeding, embryo transfer and biotechnology research, aiming to improve breeding efficiency and the possibility of genetic improvement. The equipment is suitable for a wide range of animals, including cattle, horses and sheep.

Performance

Improve breeding efficiency

Efficient identification of high quality eggs

The in vivo egg retrieval instrument can observe the follicles in the ovary in real time with the help of ultrasonic technology during the process of egg retrieval, and determine their maturity and quality. This is important for selecting high quality eggs for fertilization. Compared with the traditional way, the in vivo egg retrieval instrument can greatly improve the accuracy and efficiency of egg screening.

Cultivation of superior breeds

Through ultrasound-guided in vivo egg retrieval, professionals can genetically evaluate the parent animals and select those with superior genes for breeding. This will help to improve the quality of the offspring animals and provide guarantee for the upgrading and development of the whole breeding industry.

Technical Parameters

Specification Name	Technical Parameters
A.C. voltage	210-240V
Operating frequency	50-60Hz
Rated power	100VA
Operating temperature	-20-50℃
Relative humidity	20-75%RH
Temperature setting range	35.0-40.0℃
Temperature factory default	37.5℃
Temperature increase/decrease in fineness	士0.1℃
Temperature control accuracy	±0.5℃
Recommended to operate negative pressure	60-120mmHg
Negative pressure control error	±5mmHg
Maximum negative pressure value	≥480mmHg
Equipment weight	6.8Kg
Overall dimensions	298mm239mm118mm

Optional

Ovum Pick Up Transducer

Ovum Pick Up (OPU) Ultrasound Transducer

Traditional breeding methods usually need to wait for cattle and horses to come into heat and then carry out artificial insemination, which is less efficient and requires professional breeding technicians to operate. The in vivo egg collector can obtain and fertilize the eggs before the animal comes into heat, which greatly reduces the time, labor and cost of the traditional method and improves the breeding efficiency.

Detection depth: up to 80MM;
Level of anti-fluid:IPX7 for direct water rinsing of the probe;
Probe wire length:2M Can be customized according to customer requirements;

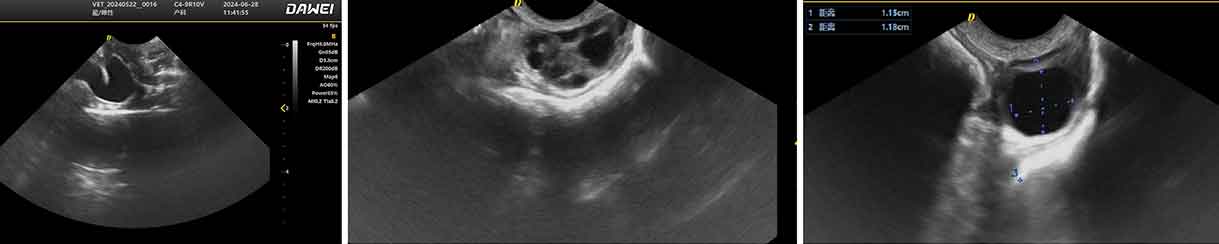

Frequency range: The frequency range between 4.0-9.0MHz allows clear visualization of follicles as small as 2MM-3MM;

Portable Animal Color Doppler Ultrasoun Machine | L3

L3 portable animal ultrasound machine has more detailed and high-definition images. Compact and lightweight, can be used with OPU probe to meet the needs of healthcare professionals in different scenarios.

Precise localization, efficient egg retrieval

Guided by the L3-VET Animal Color Doppler Ultrasound Diagnostic Instrument, the Veterinary Cattle Equine Ovum Pick-UP Equipment is able to more accurately locate the follicles in the animal's ovaries, helping us to determine the follicle's maturity and state of health, thus ensuring that each egg extracted is in the best condition for fertilization.

Comprehensive assessment for optimal reproduction

In addition to the egg retrieval function, the L3-VET Animal Color Doppler Ultrasound Diagnostic Instrument is also capable of comprehensively evaluating an animal's reproductive system, including examination of the uterus, ovaries, and fallopian tubes. This helps us identify and solve problems in the breeding process in time, optimize the breeding strategy and improve the breeding success rate.
