Professional Handheld Full-Digital Veterinary Ultrasound Machine For Cattle, Horses, Dogs, Cats, Sheep, and Pigs

S1-VET

The S1-vet handheld black and white fully digital animal ultrasound machine is a compact and portable veterinary ultrasound device that offers 6 common animal gestational weekly measurements along with packet measurements. It is specifically designed for use in animal healthcare on farms.

Inquiry Now Download as PDF

Product Detail

Applications

The Dawei S1 handheld veterinary ultrasound machine is specifically designed for the examination of abdominal organs in a wide range of animals, including cattle, horses, dogs, cats, sheep, pigs and other species.

Performance

Lightweight and Portable Cattle/Sheep/Horse Ultrasound

Perlect for one-handed use in outdoor settings like farms.
User-Iriendly design makes it a reliable toolfor various situations,Ensuring efficient and accurate imaging on the go.

Handheld Full-Digital Veterinary Ultrasound Machine

HD image playback function
Image storage function
Pre-existing optimized inspection parameters
Display, high brightness, low power consumption
Support large animals, small animals pregnancy test and other common function
Handheld veterinary ultrasound display Mode B. B-B. Brightness Contrast Visually
AdjustableCope with the complex environment of the farm Easier to operate： Waist strap for one-handed operation 1000nts high brightness indicator, specializing in outdoor use

Multiple pseudo-color displays

Parameter	Specification Details	Key Marketing Features & Keywords
Applications	Abdominal examination for Pig, Cow, Sheep, Horse, and Pets	Bovine, Equine, Ovine, Swine, and Canine Ultrasound
Monitor	5.6-inch LED medical display	High-resolution Medical LED for clear field imaging
Scanning Method	Convex / Linear array	Versatile multi-probe support for various clinical needs
Display Modes	B, BB, BM	Standard diagnostic modes for pregnancy checking
Frequency Range	2.5MHz to 8.0MHz (Multi-frequency)	Variable frequency probes for optimal penetration and resolution
Measurements	Distance, Perimeter, Area, Obstetrics	Comprehensive Veterinary OB packages (BTD, BUD, GSD, CRL, etc.)
Storage	8GB internal memory, expandable via TF card	Large data capacity for thousands of diagnostic images
Cine-loop	255 frames	Continuous playback or frame-by-frame review
Battery Life	2600mAh (approx. 3 hours continuous work)	Long-lasting battery designed for remote farm use
Image Processing	256 gray levels, 8 pseudo-colors, 15x zoom	Advanced imaging with NR and IP adjustment
Portability	Net weight: 950g	Ultra-lightweight handheld design for one-handed operation
Connectivity	USB, TF Card, Probe, and 14V Charging ports	Easy data export and real-time measurement capabilities

S1 Veterinary Ultrasound Technical Specifications

Probe

The backfat probe is suitable for the detection of backfat content and eye muscle content in pigs and cattle;
Rectal probe is suitable for the detection of the reproductive system in the rectum of large animals;
Line array probes for small animals: cats and dogs, etc. for abdominal detection;
Convex array probe for medium and large animals: pigs, sheep, large dogs abdominal detection;
Micro-convex probes for abdominal examination of small and medium-sized animals.

Product Listing

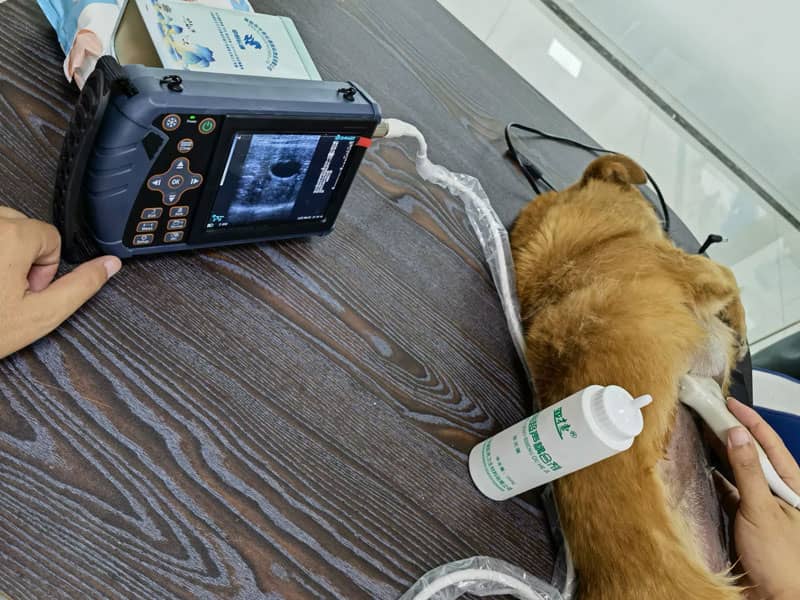

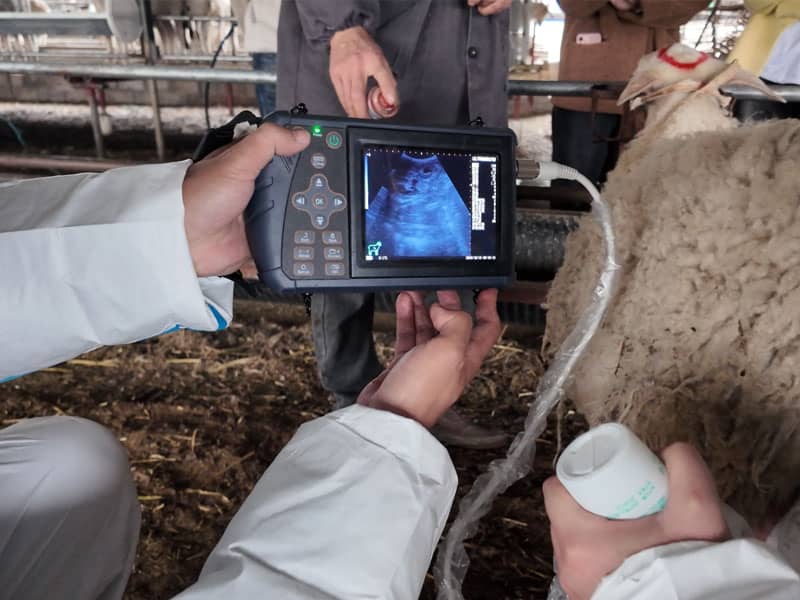

Clinical Images

1. What species-specific measurements does the S1 support?

The S1 includes specialized software for Bovine (BTD, BUD), Equine (EGSD, ESD), Swine (HLA, SLA), Ovine (SCRL), and Canine/Feline (HD, BD, GSD).

2.Is the device suitable for outdoor or farm environments?

Yes. Weighing only 950g and featuring a 3-hour battery life, it is specifically designed for mobile use in pastures and farms.

3.Which probe should I use for large animal pregnancy diagnosis?

We offer a 6.5MHz Rectal Probe for bovine and equine exams, and a 3.5MHz Convex Probe for general abdominal scanning.

4.Can I measure back-fat thickness with this device?

Yes, the S1 is compatible with a specialized 3.5MHz Back-fat Probe designed for swine and livestock management.
